| Color |
Black |
| Dimension |
Structure: 370(L)* 201(W)* 435(H)mm |
| Case: 405(L)x201(W)x435(H)mm |
| Carton: 488(L)x255(W)x468(H)mm |
| Material |
Structure Back Plate made of SPCC in 0.60mm, The rest including internal structure made of SPCC in 0.50mm; Panel: ABS Plastic + 4.0 mm Tempered Glass - Coating Film; Silk Print Logo on PSU Cover; |
| M/B Type |
ATX, Micro-ATX, Mini-ITX |
| External |
None
|
| Internal |
3.5"*3 + 2.5"*2 + 2.5"*2 (Not allow fans in inner-front) |
| Converted Bracket |
With 2*2.5" SSD Bracket |
| CPU MAX H |
Can fix no higher than 160mm CPU Cooler |
| VGA MAX L |
Can fix no longer than 350mm GFX Length
|

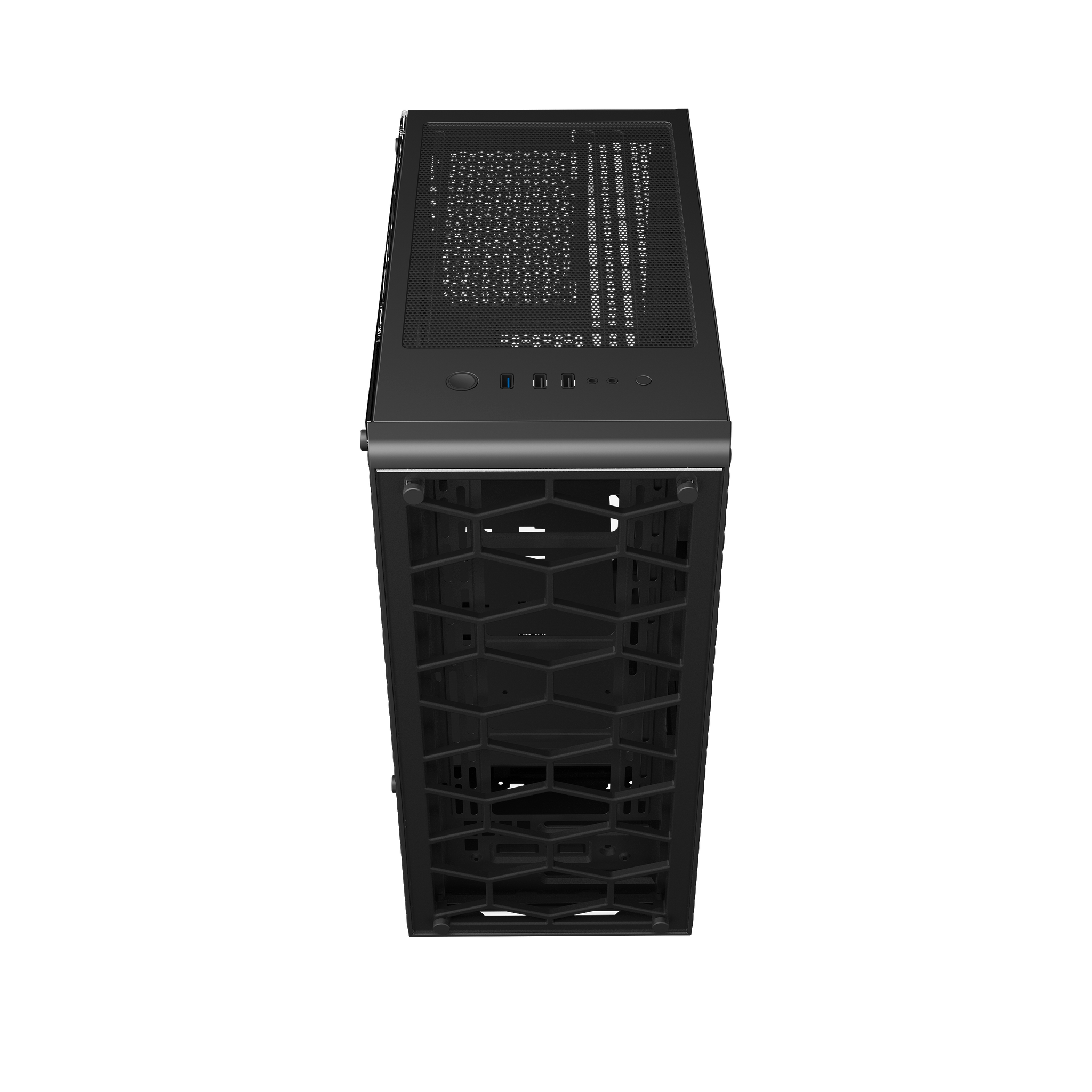

| I/O Panel |
Real USB3.0 x 1 + USB1.1 x 2; Normal Microphone x 1 & HD Audio x 1; Reset button, Power Button;
|
| Cord design |
Back plate wire routing (20mm + front 40mm space) |
| Expansion PCI Slots |
Standard x 7 |
| Cooling System |
Front: 12cm Fan*3 or 240mm water cooling (optional) |
| Rear: 12cm Fan*1 (optional) |
| Top: 12cm Fan*2 or 14cm*2 (optional) or 240mm water cooling - RAM height no more than 32mm (optional) |

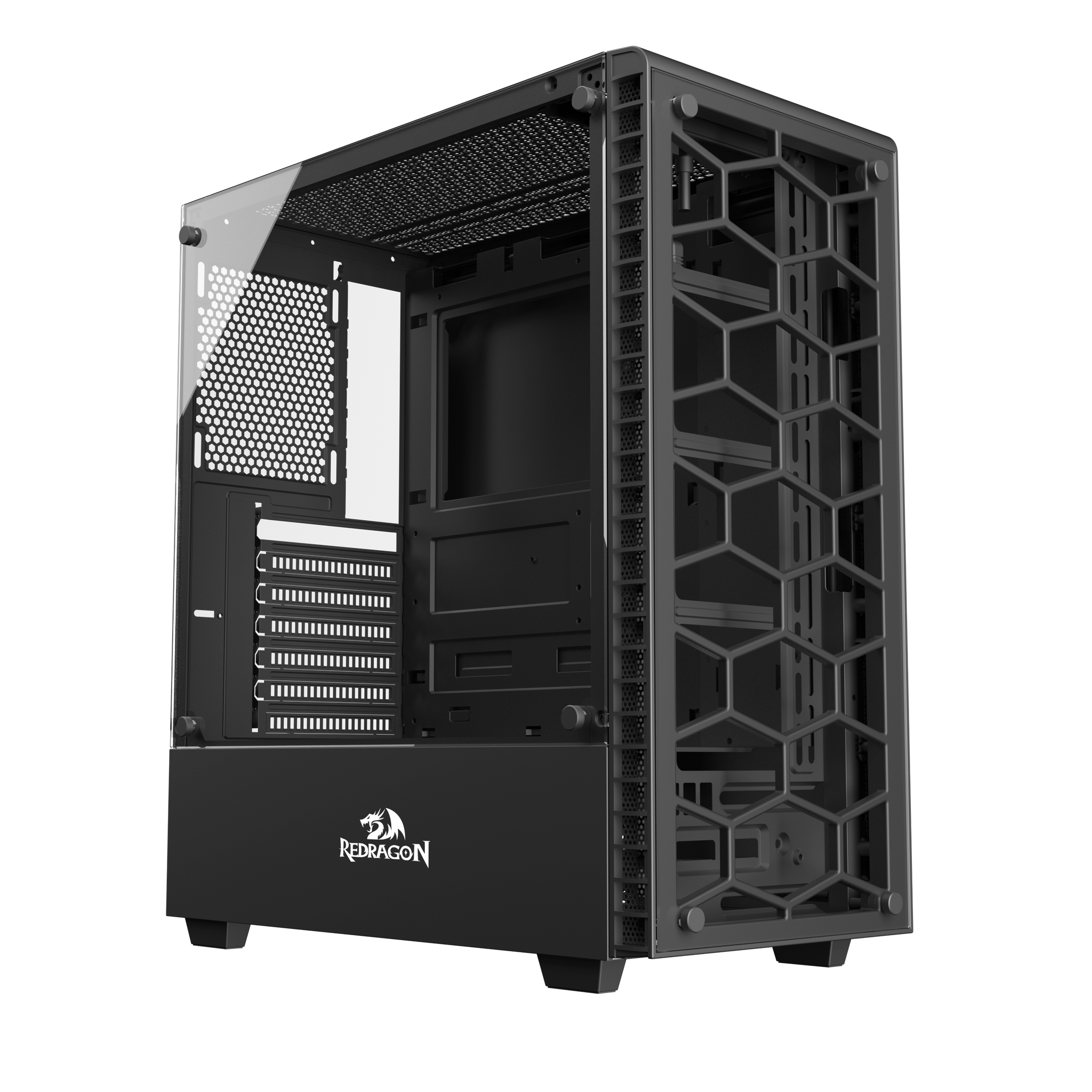

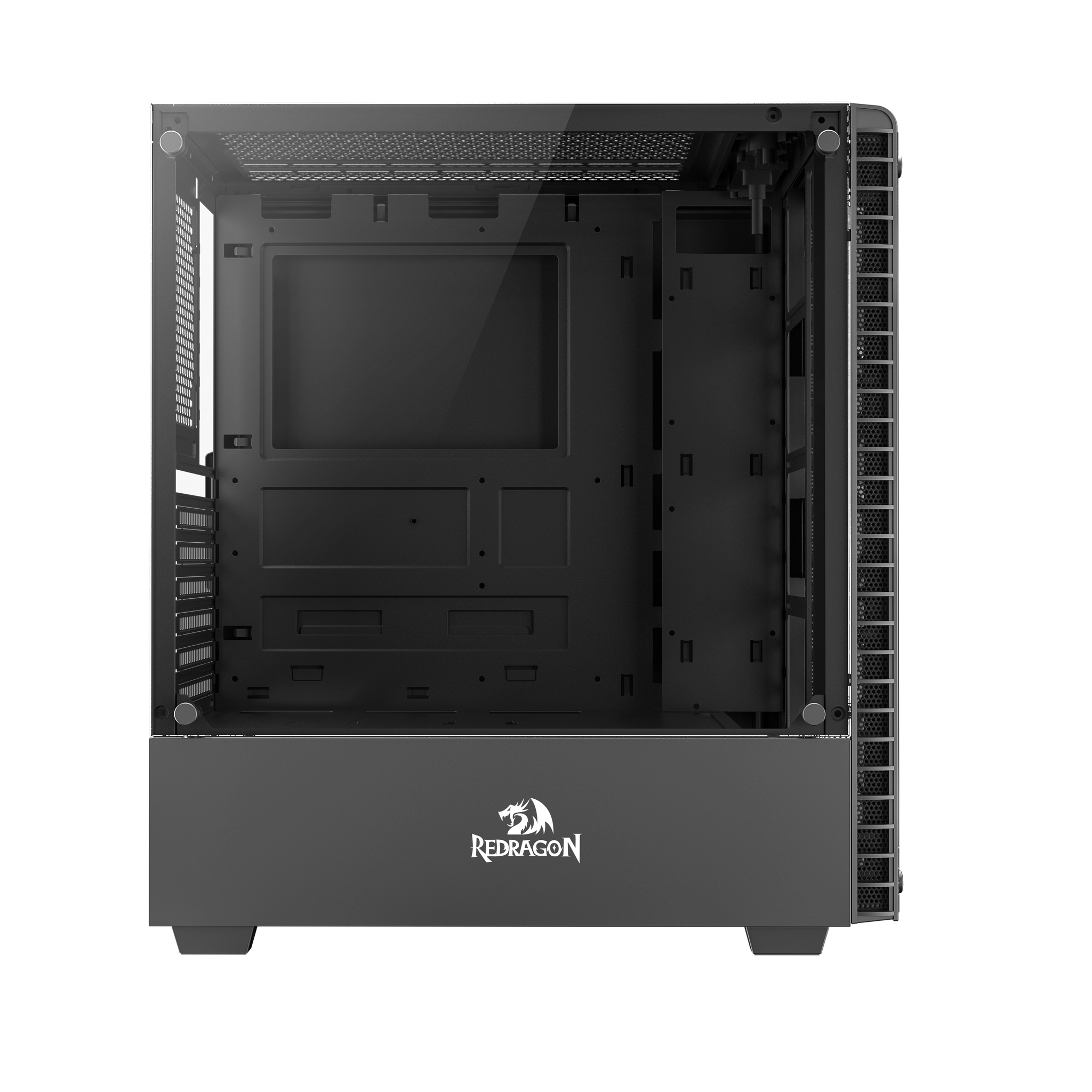

| Side_L: 4.0mm Tempered Glass - Gray Color; |
| Side_R: 0.45mm SPCC (Before Coating) + Coating;
|
| Structure Hang |
Black Plate with 2 Hangs to organize CPU cooler cable, top cover fan's cable & rear fan's cable efficiently;
|
| Weight |
N.W.：5.50 kg；G.W.：6.35 kg
|
| PSU |
ATX - Up to 180mm length |
